Available in sizes ranging from 1/2” to 8” in diameter, United Titanium carries a robust inventory of pipe stub ends. Manufactured with titanium grades 2 and 7 or zirconium grade 702, our standard stock is comprised of butt weld MSS Type A. We machine ASA Long stub ends on application. For custom stub end specifications, contact us for a quote.

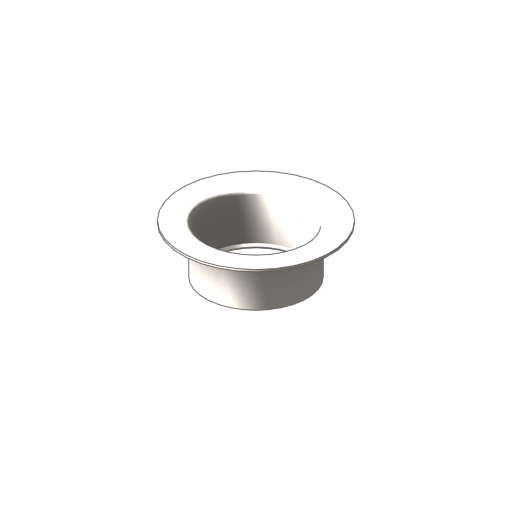

Zirconium & Titanium Stub Ends
Dimensions
Stub End Dimensions
| S10 | S40 | ||||||||||
|
NOM. PIPE SIZE |
OUTSIDE DIA. |
LAP DIA. |
TYPE A RADIUS |
LENGTH (L) MSS ASA |
INSIDE DIA. |
WALL THICKNESS |
LAP THICKNESS |
INSIDE DIA. |
WALL THICKNESS |
LAP THICKNESS |
|
| INCHES | (OD) | (G) | (R) | SHORT | LONG | (ID) | (T) | (t) | (ID) | (T) | (t) |
| 1/2 | 0.840 | 1-3/8 | 1/8 | 2 | 3 | 0.674 | 0.083 | 0.083 | 0.622 | 0.109 | 0.109 |
| 3/4 | 1.050 | 1-11/16 | 1/8 | 2 | 3 | 0.884 | 0.109 | 0.109 | 0.824 | 0.113 | 0.113 |
| 1 | 1.315 | 2 | 1/8 | 2 | 4 | 1.097 | 0.109 | 0.109 | 1.049 | 0.133 | 0.133 |
| 1-1/4 | 1.660 | 2-1/2 | 3/16 | 2 | 4 | 1.442 | 0.109 | 0.109 | 1.380 | 0.140 | 0.140 |
| 1-1/2 | 1.900 | 2-7/8 | 1/4 | 2 | 4 | 1.682 | 0.109 | 0.109 | 1.610 | 0.145 | 0.145 |
| 2 | 2.375 | 3-5/8 | 5/16 | 2-1/2 | 6 | 2.157 | 0.109 | 0.109 | 2.067 | 0.154 | 0.154 |
| 2-1/2 | 2.875 | 4-1/8 | 5/16 | 2-1/2 | 6 | 2.635 | 0.120 | 0.120 | 2.469 | 0.203 | 0.203 |
| 3 | 3.500 | 5 | 3/8 | 2-1/2 | 6 | 3.260 | 0.120 | 0.120 | 3.068 | 0.216 | 0.216 |
| 3-1/2 | 4.000 | 5-1/2 | 3/8 | 3 | 6 | 3.760 | 0.120 | 0.120 | 3.548 | 0.226 | 0.226 |
| 4 | 4.500 | 6-3/16 | 7/16 | 3 | 6 | 4.260 | 0.120 | 0.120 | 4.026 | 0.237 | 0.237 |
| 5 | 5.563 | 7-5/16 | 7/16 | 3 | 8 | 5.295 | 0.134 | 0.134 | 5.047 | 0.258 | 0.258 |
| 6 | 6.625 | 8-1/2 | 1/2 | 3-1/2 | 8 | 6.357 | 0.134 | 0.134 | 6.065 | 0.280 | 0.280 |
| 8 | 8.625 | 10-5/8 | 1/2 | 4 | 8 | 8.329 | 0.148 | 0.148 | 7.981 | 0.322 | 0.322 |
| 10 | 10.750 | 12-3/4 | 1/2 | 5 | 10 | 10.420 | 0.165 | 0.165 | 10.020 | 0.365 | 0.365 |
| 12 | 12.750 | 15 | 1/2 | 6 | 10 | 12.390 | 0.180 | 0.180 | 12.000 | 0.375 | 0.375 |
| 14 | 14.000 | 16-1/4 | 1/2 | 6 | 12 | 13.624 | 0.188 | 0.188 | 13.250 | 0.375 | 0.375 |
| 16 | 16.000 | 18-1/2 | 1/2 | 6 | 12 | 15.624 | 0.188 | 0.188 | 15.250 | 0.375 | 0.375 |
| 18 | 18.000 | 21 | 1/2 | 6 | 12 | 17.624 | 0.188 | 0.188 | 17.250 | 0.375 | 0.375 |
| 20 | 20.000 | 23 | 1/2 | 6 | 12 | 19.564 | 0.218 | 0.218 | 19.250 | 0.375 | 0.375 |
| 24 | 24.000 | 27-1/4 | 1/2 | 6 | 12 | 23.500 | 0.375 | 0.375 | 23.250 | 0.375 | 0.375 |
Applications
Titanium and Zirconium Stub End Applications
Often used in conjunction with standard lap joint flanges, zirconium and titanium pipe stub ends provide seamless connections, while limiting corrosion in piping systems. Made with premium materials, these fittings withstand oxidizing acids and other corrosive fluids, including seawater, mineral acids and alkalis. Common applications include:
- High-pressure pipelines in the oil and gas industry
- Pulp and paper processing equipment
- Marine engineering and shipbuilding
Materials
| Titanium | Zirconium |
| CP-TI (Grade 2) | 702 |
| TI-PD (Grade 7) |
Specifications
Find product details or view inventory of our sub ends below and quickly request a quote by entering your desired quantity and clicking the Add to RFQ button. Use the search filter to help narrow down the inventory listed. Add additional items by navigating through the fittings, fasteners and mill products inventory. Once you are ready to submit your request, simply open the RFQ cart at the bottom of the page and click submit.
Inventory List
Sort by Material
S-01-4010S0500
1/2" S/10 MSS T-A STUBEND TI GR2
In Stock
: 45
S-01-4010S0750
3/4" S/10 MSS T-A STUB END TI GR 2
In Stock
: 50
S-01-4010S1000
1" S/10S MSS T-A STUB END TI GR 2
In Stock
: 74
S-01-4010S10000
10" S/10 MSS T-A STUB END TI GR 2
Available
S-01-4010S1500
1-1/2" S/10S MSS T-A STUB END TI GR 2
In Stock
: 38
S-01-4010S2000
2" S/10S MSS T-A STUB END TI GR 2
In Stock
: 42
S-01-4010S3000
3" S/10S MSS T-A STUB END TI GR 2
In Stock
: 40
S-01-4010S4000
4" S/10 MSS T-A STUB END TI GR 2
In Stock
: 27
S-01-4010S6000
6" S/10 MSS T-A STUB END TI GR 2
In Stock
: 12
S-01-4010S8000
8" S/10S MSS T-A STUBEND TI GR 2
In Stock
: 6
S-01-4010W10000C
10" S/10S MSS T-A STUBEND TI GR2
Available
S-01-4010W12000C
12" S/10S MSS T-A STUBEND TI GR2
Available
S-01-4040S0500
1/2" S/40 MSS T-A STUBEND TI GR2
In Stock
: 26
S-01-4040S0750
3/4" S/40 MSS T-A STUB END TI GR 2
In Stock
: 32
S-01-4040S1000
1" S/40 MSS T-A STUB END TI GR 2
In Stock
: 88
S-01-4040S1500
1-1/2" S/40 MSS T-A STUBEND TI GR 2
In Stock
: 64
S-01-4040S2000
2" S/40 MSS T-A STUB END TI GR 2
In Stock
: 79
S-01-4040S3000
3" S/40 MSS T-A STUB END TI GR 2
In Stock
: 5
S-01-4040S4000
4" S/40S MSS T-A STUB END TI GR 2
In Stock
: 7
S-01-4040S6000
6" S/40S MSS T-A STUBEND TI GR 2
In Stock
: 29
S-01-4040S8000
8" S/40 MSS T-A STUBEND TI GR2
In Stock
: 14
S-01-4080S0750
3/4" S/80S MSS T-A STUBEND TI GR2
In Stock
: 24
S-01-4080S1000
1" S/80S MSS T-A STUB END GR2
In Stock
: 14
S-01-4080S1500
1-1/2" S/80S MSS T-A STUBEND TI GR2
In Stock
: 17
S-01-4080S2000
2" S/80S MSS T-A STUBEND TI GR2
In Stock
: 1
S-01-5010S1000
1" S/10S ASA T-A STUBEND TI GR2
In Stock
: 7
S-01-5010S1500
1-1/2" S/10S ASA T-A STUBEND TI GR2
In Stock
: 4
S-01-5010S2000
2" S/10S ASA T-A STUBEND TI GR2
In Stock
: 18
S-01-5010S3000
3" S/10S ASA T-A STUBEND TI GR2
In Stock
: 15
S-01-5010S4000
4" S/10S ASA T-A STUBEND TI GR2
In Stock
: 15
S-01-5010S8000
8" S/10S ASA T-A STUBEND TI GR2
In Stock
: 5
S-01-5040S1000
1" S/40S ASA T-A STUBEND TI GR2
In Stock
: 8
S-01-5040S2000
2" S/40S ASA T-A STUBEND TI GR2
In Stock
: 8
S-01-5040S3000
3" S/40S ASA T-A STUBEND TI GR2
In Stock
: 6
S-01-5040S4000
4" S/40S ASA T-A STUBEND TI GR2
In Stock
: 6
S-01-5040S6000
6" S/40S ASA T-A STUBEND TI GR2
In Stock
: 8
S-03-4010S1000
1" S/10 MSS T-A STUB END TI GR7
In Stock
: 24
S-03-4010S1500
1-1/2" S/10 MSS T-A STUBEND TI GR7
In Stock
: 28
S-03-4010S2000
2" S/10 MSS T-A STUB END TI GR 7
In Stock
: 14
S-03-4010S3000
3" S/10 MSS T-A STUB END TI GR7
In Stock
: 22
S-03-4010S4000
4" S/10 MSS T-A STUB END TI GR7
In Stock
: 11
S-03-4010S6000
6" S/10 MSS T-A STUB END TI GR7
In Stock
: 18
S-03-4010S8000
8" S/10 MSS T-A STUB END TI GR7
In Stock
: 1
S-03-4040S0750
3/4" S/40 MSS T-A STUB END TI GR 7
In Stock
: 18
S-03-4040S1000
1" S/40 MSS T-A STUB END TI GR 7
In Stock
: 47
S-03-4040S1500
1-1/2" S/40 MSS T-A STUB END TI GR 7
In Stock
: 23
S-03-4040S2000
2" S/40 MSS T-A STUB END TI GR 7
In Stock
: 29
S-03-4040S3000
3" S/40 MSS T-A STUB END TI GR 7
In Stock
: 19
S-03-4040S4000
4" S/40 MSS T-A STUBEND TI GR 7
In Stock
: 13
S-04-4010S0500
1/2" S/10S MSS T-A STUB END ZIRC 702
In Stock
: 39
S-04-4010S0750
3/4" S/10S MSS T-A STUB END ZIRC 702
In Stock
: 78
S-04-4010S1000
1" S/10S MSS T-A STUB END ZIRC 702
In Stock
: 21
S-04-4010S1500
1-1/2" S/10S MSS T-A STUBEND ZIRC 702
In Stock
: 4
S-04-4010S2000
2" S/10S MSS T-A STUB END ZIRC 702
In Stock
: 74
S-04-4010S3000
3" S/10S MSS T-A STUB END ZIRC 702
In Stock
: 9
S-04-4010S4000
4" S/10S MSS T-A STUB END ZIRC 702
In Stock
: 22
S-04-4010S6000
6" S/10S MSS T-A STUB END ZIRC 702
In Stock
: 5
S-04-4040S0500
1/2" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 36
S-04-4040S0750
3/4" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 39
S-04-4040S1000
1" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 65
S-04-4040S1500
1-1/2" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 25
S-04-4040S2000
2" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 22
S-04-4040S3000
3" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 28
S-04-4040S4000
4" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 28
S-04-4040S6000
6" S/40S MSS T-A STUB END ZIRC 702
In Stock
: 16
S-04-4040S8000
8" S/40S MSS T-A STUB END Z702
In Stock
: 4
S-04-4080S0500
1/2" S/80 MSS T-A STUB END ZIRC 702
In Stock
: 2
S-04-4080S0750
3/4" S/80S MSS T-A STUB END ZIRC 702
Available
S-04-4080S1000
1" S/80S MSS T-A STUB END ZIRC 702
In Stock
: 5
S-04-4080S1500
1-1/2" S/80 MSS T-A STUBEND ZIRC 702
In Stock
: 4
S-04-4080S2000
2" S/80 MSS T-A STUB END ZIRC 702
In Stock
: 5
S-04-4080S3000
3" S/80S MSS T-A STUB END ZIRC 702
In Stock
: 1
S-04-4080S4000
4" S/80S MSS T-A STUB END ZIRC 702
In Stock
: 4
S-04-4080S6000
6" S/80S MSS T-A STUB END ZIRC 702
In Stock
: 9
S-04-4080S8000
8" S/80S MSS T-A STUB END ZIRC 702
In Stock
: 6
